Carbonics Estimate for Mars

Draft Beer Towers

Custom Tower available, just show us your design and let us build the tower that's just right for your business.

Contract for Installation of Parts and Labor

This agreement is entered into in South Houston, Texas made between _Mars Bar (sp?)___ (hereafter called “Client”) located at address: __19285 Old Houston Rd, Conroe, TX 77302__ and Carbonics, INC. (hereafter called “Carbonics”) located at 506 Nebraska St, South Houston, Texas 77587.

Carbonics agrees to provide parts and labor based on the following terms and conditions:

Client shall provide Carbonics with ________ of the estimated parts and labor cost of thto initiate this contract.
The Client made need to pay additional money for contract services or parts that fall outside of the actual Beer System. Beer System includes Towers, Faucets, trunk line, metering systems, co2 or nitrogen systems, blending technologies, wall panels with pumps, fobs, and regulators, glycol chillers, cold plates, and co2 monitors/alarms. Countertops, ice-makers, walk-in coolers, custom cabinetry, glass tenders, glass chillers, soda and liquor systems, and bottle coolers can all be supplied and installed; but most of those items must be paid in advance or upon delivery.
______ must be paid in advance or upon delivery.
The remainder of the costs shall be remitted by the Client to Carbonics upon the completion of the job. The job will not be completed without payment, and all equipment belongs to Carbonics until the final bill is paid in full. If no one is available to make payment the work will not be completed and the Client will be charged an additional $300.00 re-scheduling fee.
Carbonics and the Client agree that in the case of a CONTRACT for a flat fee, Carbonics will make best efforts to perform the work within the allotted time quoted. Furthermore, a CHANGE ORDER must be signed by the Client if the Client changes the scope of the work in a manner that incurs an additional expense of time or material.
Dispute Resolution: All disputes shall be settled in Harris, County, TX in accordance with Texas Law. The prevailing party shall have the right to collect from the other part its reasonable costs and necessary disbursements and attorney's fees incurred in enforcing this Agreement.
The term of this Agreement shall commence upon the date of its acceptance by the Client. Deposits must be paid before Carbonics will order equipment or schedule a Service Crew.
The parts and labor are described below:

e Beer System portion of this quote

Author: sam@carbonics.com

Until this estimate is made into a firm quote, the prices below are our best estimate based on the last information we had. Prices may change as the Vendors change their product offerings.
Roughly $10,300 (plus tax, plus shipping for the cooler panels) Not including labor for the actual assembly. I should have that number within a day or so. 2-3 weeks lead time to deliver the actual parts. 1 week lead time to schedule install. Install would most likely be by Valderamma AC, one of our business partners. 5 year warranty on compressor.

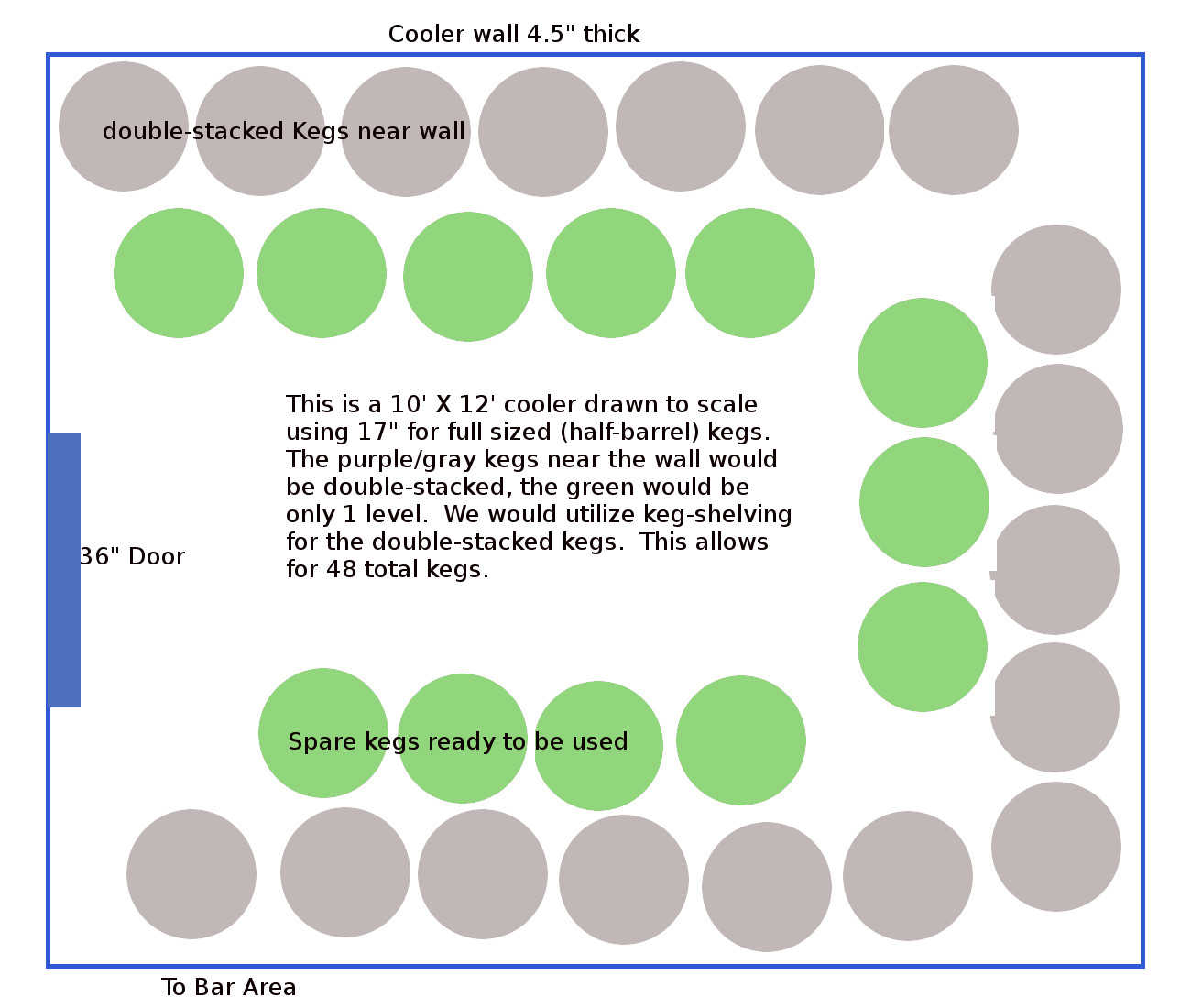

Completed Tasks: Wednesday 8/15/18: Met with Steven and discussed layout options. Thursday 8/16/18: Requested walk-in cooler quotes from Enterprise, Warren, and Bush (Bush responded) Friday 8/17/18: Enterprise response arrived (they are too busy). Created to-scale model for cooler layout within 12' X 10' space. Thursday 8/23/18: Firm price of $15,500 for walk-in Cooler, including all hardware and installation. Firm prices for towers also sent on email yesterday. Wednesday 8/29/18: Steven is waiting to hear back from an AC Vendor. We'll go with whoever has the best price. Valderamma AC has submitted a quote in writing for $15,500.00 We're also waiting to see about the tower. Anticipated: Customer will select tower option and give a go or no go on walk-in cooler. Projected install date:
	Square Pass-through Tower Stainless Steel Exterior or available in Tarnish-Free Brass $888 8-Faucet Air-Cooled $1140 8-Faucet Glycol-Chilled $1008 10-Faucet Air-Cooled $1320 10-Faucet Glycol-chilled $1164 12-Faucet Air-Cooled $1542 12-Faucet Glycol-Chilled BRASS VERSION: 10-Faucet Air-Cooled $1770 12-Faucet Air-Cooled $1914 Pass Through design 4" Square columns Air cooled or Glycol 15"H, 10.5" Faucet Clearance, 3" Centers faucet-to-faucet 304 Grade Stainless Steel inside and out
	Box-Top Stainless Steel, unbalanced, 6' 3/16 vinyl lines, 3/8 copper glycol lines 15" height, 11.5" faucet clearance, 3" pedestal $414 2-Faucet Air-Cooled 10" wide box $474 2-Faucet Glycol-Chilled 10" wide $426 3-Faucet Air-Cooled 10" wide $486 3-Faucet Glycol-Chilled 10" wide $450 4-Faucet Air-Cooled 13" wide $522 4-Faucet Glycol-Chilled 13" wide $526 5-Faucet Air-Cooled 16" wide $594 5-Faucet Glycol-Chilled 16" wide $594 6-Faucet Air-Cooled 19" wide $702 6-Faucet Glycol-Chilled 19" wide $702 8-Faucet Air-Cooled 25" wide box $792 8-Faucet Glycol-Chilled Available in Pass-Through configuration also 4" tall Box Face, 3" diameter column, 15" height, Drain Trays from $110 to $250 depending on width and length
	American Box Tower 10+ faucets 4" diameter pedestals 3" CTC faucets UBC $1385 14-faucet 43" wide Pedestals on 24" centers UBC $1565 16-faucet 49" wide pedestals on 27" centers UBC $1745 18-faucet 55" wide pedestals on 33" centers UBC $1915 20-faucets 61" wide pedestals are 39" centers UBC $2400 24-faucets 73" wide pedestals are 42" centers
	American Box Tower (double-sided) 4" diameter pedestals 3" CTC faucets 12.5" Faucet to ground clearance UBC $1702 20-faucets (10 per side) 31" wide 15.5" pedestal centers Micromatics Version 11" Faucet to ground clearance MM $3240 20-faucets (10 per side) 36" wide
	Wall-Mounted Panel Glycol or Air-Cooled 304 Grade Stainless Steel $668.25 2-Faucet Air-Cooled 15" Wide $735.75 2-Faucet Glycol-Chilled $830.25 6-Faucet glycol $1073.25 8-Faucet glycol 30" inset portion is 25"wide, 4" tall, 5" deep, except main cylindrical column is 21" deep $1788.75 12-Faucet Air-Cooled 36" Wide $1957.50 12-Faucet Glycol-Chilled
Economy version Premium version + adds all 304 grade SS internals and copper Glycol lines aluminum cooling block and better insulation	Pipeline Polished Stainless Steel, Glycol-Chilled. (all sizes listed) $1250 6-Faucet WIDE Version (38 3/16" width) $1425 8-Faucet (35.5" width standard) $1675 10-Faucet (41 5/8" width standard) $1825 12-Faucet (47 5/8" width standard) $2125 14-Faucet (61" width) 3" diameter pipe, height to faucet 14 5/8" Available standard or Wide (3" FtF or 4 5/16" FtF) Available in Short leg (changes Clearance to 10 5/8") * Available in "Premium" with all 304 grade Stainless Steel tubing with copper Glycol lines for $250-300 extra depending on number of faucets
	Pipeline (Brushed Copper Finish) $3780 20-Faucet
	Pipeline Brass PVD Finish
	Arched Pipe $1710 8-Faucet, 43 3/5" width (24" DT) $1925 10-Faucet, 49 1/2" width (30" DT) $2220 12-Faucet, 55 3/7" width (*36" DT) Brass Body with a Stainless steel exterior and shanks. Cool-Tap technology (sealed, insulated, aluminum cold plate on shanks) 3/8" copper glycol lines (air cooled available) Height to Faucet 11.75" Pipe diameter 4.125" width for 8-faucet = 37.5" Finishes: Brushed or polished stainless steel
	Bridge Tower $1550 8-Faucet, 39.5" width (24" DT) $1780 10-Faucet, 45 7/16" width (30" DT) $1985 12-Faucet 51 3/8" width (*36" DT) Brass and Stainless Steel with SS shanks and Faucets. Cool-Tap technology (sealed, insulated, aluminum cold plate on shanks) 3/8" copper glycol lines (air cooled available) Height to Faucet 12 3/8" Column diameter 5.125" Faucets are 3" Center to Center C2C Finishes: Brushed or Polished Stainless Steel
	Drip Trays (DT) Stainless Steel Surface Trays: 12" X 7" X 3/4" height - $70 (2-3 faucets) 15" X 5.25" X 3/4" height - $75 16" X 8" X 3/4" height - $80 (4 faucets) 18" X 8" X 3/4" height - $215 18" X 8" X 3/4" height + Glass Rinser - $250 20" - $150 (4-5 faucets) 24" X 5.25" X 3/4" height - $155 24" - $160 (5-6 faucets) 32" - $175 (8 faucets)
	Columnar Drain Trays
	BrauHaus-Y 6-12 Faucets, Glycol or Air Cooled. (Glycol recommended due to configuration) Height 21 5/8", width (varies by faucet)", Faucet clearance 15 11/16" $4768.75 6- Faucet width 54 3/16" $5218.75 8 - Faucet width 59 3/16" $5431.25 10 - Faucet width 64" $6062.50 12 - Faucet width 68 7/8" Made in Italy with Stainless Steel Chrome finish 3/16 beer line 3/8 recirculation line -copper
	Titan "Y" (from Micromatic) 4" diameter pedestal, 7" flanges product only touches 304 SS Polished Stainless Steel exterior (long lasting) Glycol Only overall height 19 7/8" Faucet clearance 14", 4" centers 6-faucet $2193.75 width 44 3/4" 8-faucet $2666.25 width 52 3/4" 12-faucet $3368.25 width 68 3/4"
	Flush Mounted Drain Pans extra $$ + up to 2 weeks manufacture time
	Wall Mount Long Draw Glycol Chilled Panel
	Faucets Faucets can come in Stainless Steel, 304 Grade Stainless (for wine), or in chrome plated Brass for extra economy.
powder coated black iron example	Finishes: Most towers can be finished with polished stainless steel, or brushed stainless steel. Some towers can have a Brass/PVD finish (usually a few hundred $$ more) Any Tower could be powder-coated to achieve the exact look you want. Hundreds of powdercoating colors and textures to choose from. (see pic)

Beer Systems Hardware

Author: Sam

This is the backbone of your Draft Beer System. A Carbonics Inc installed system is guaranteed to pour a perfect beer!

Listed below you can find some of the equipment (and cost) available to build your cost saving Draft Beer System:

If your gas blend is not right you will have eiher flat beer or foamy beer. Both of which cost you income!	Carbonics Draft Beer Equipment Purchase or Lease your equipment (see bottom for lease info) and Carbonics, Inc. guarantees a perfect pour for every line, saving you $$ on loss of product. No wasted foam, no overpours, no waiting for the beer to "settle". Talk to us about your equipment options: 713-944-7900	Colder beer loses all taste. Warmer beer is unpleasant and more likely to foam!
	Perlick "quick Chill" Pp Series 1/3 Hp Glycol Chiller 1/3 HP Compressor 1 gallon reservoir plus 1 additional gallon of glycol per 85' of trunk length used. Up to 150' run. Digital thermostat 120V/60Hz All PP Series units require 15 amp dedicated circuit 28"L x 21 3/4"W x 16 3/4"H Includes 6' length power cord Shipping weight: 120 lbs $2275.00
	Perlick "quick Chill" Pp Series 1/2 Hp Glycol Chiller 1/2 HP Compressor 1 gallon reservoir plus 1 additional gallon of glycol per 85' of trunk length. Up to 250' run Digital thermostat 120V/60Hz All PP Series units require 15 amp dedicated circuit 28"L x 21 3/4"W x 16 3/4"H Includes 6' length power cord Shipping weight: 125 lbs $2390.00
	Perlick "quick Chill" 4400 Series 3/4 Hp Glycol Chiller 3/4 HP Compressor Up to 300' run Upgradeable to 2 pumps & 400' run 2 gallon reservoir plus 1 additional gallon per 85' if trunk length used Digital thermostat 120V/60Hz or 230v/60Hz Requires 20 amp dedicated circuit 24 1/4"L x 17 1/4"W x 25 1/2"H ** Does not include power cord Shipping weight: 180 lbs $3245.25
	Gly Chiller, 75g TOTTON (1/3hp) Up to 75' run 5 gallon reservoir 1/3 HP compressor Digital thermostat 115V dedicated circuit 15 amp 14"W x 15"D x 28"H $1345.00
	Gly Chiller, H-35g TOTTON (1/3hp) 5 gallon reservoir 1/3 HP compressor Digital thermostat 115V dedicated 15 amp circuit 27"W x 19"D x 15.5"H Up to 75' run $1345.00 (Micromatic mm4301-ep $1510)
	Gly Chiller, H-35g Proconn (1/3hp) 5 gallon reservoir 1/3 HP compressor Digital thermostat 115V dedicated 15 amp circuit 27"W x 19"D x 15.5"H Up to 125' run $1485.00 (Micromatic mm4301 $2135)
	GLY CHILLER (1/3HP) Micromatic up to 125' run 115v 11.5 gallon bath 27.5" high X 18" wide X 29" Deep $2345 with single pump and motor $2575 Dual pump and motor
	Gly Chiller, Extra (1/2hp) 1/2HP Compressor Up to 250' run 15 gallon reservoir Digital thermostat 1/3 HP pump motor 100 GPH Procon pump 115V 20"W x 24"D x 29"H $2045.00
	Gly Chiller, Extra (3/4hp) 3/4HP Compressor Up to 450' run 15 gallon reservoir Digital thermostat 1/3 HP pump motor 100 GPH Procon pump 115V 20"W x 24"D x 29"H $2565.00
	Food Grade Propylene Glycol $37.80/gallon
	Gas Blender Mixes CO2 and N2 to the perfect Blend. Eliminates need for beer pumps in medium distance draft systems. Blends gas on the spot for special blends like Guinness and other nitrogenated beers. Single Mix Blender - $950 Dual Mix Blender - $1150
	Nitrogen Generator (with dual blender) Dispenses up to 7 kegs/hour or 16.8 pints/min (5 hr. surge) N2 Purity 99.8% Technology: Dual Bed PSA N2 Storage Tank (Provided): 28 Gallon CO2 Gas Requirement: 80 to 85 psi Blender: McDantim Trumix™ Electrical: 110 VAC, 18 Amps Compressor: Integral/Oil-Free Ambient Temperature: 35 to 105° F Size (N2 Generator): 30"H x 13"W x 10"D (85lbs) $5300.00
picture approximate	Wall Panel - Short with FOBS 4 connection brackets, 1 secondary regulator, 4-way air manifold, 4 glass and stainless steel FOBS $ 594.55 - 4 products ubc $ 315.20 - 2 products ubc
	Wall Panel - medium range (mixed gas) 4 products 4 FOBs, 4 Regulators, 4 sets of hose Good for medium ranges, maybe in combination with mixed gas $325.00 - 2 products $475.00 - 3 products $623.00 - 4 products
	Wall Panel - Long (pumps) 4 products 4 FOBS (SS & ABS), 4 Pumps, 1 Regulator w/ manifolds, 1 Regulator for pumps Good for any length of run. $385.00 - 1 product $630.00 - 2 product $850.00 - 3 product $1075.00 - 4 product $492.75 - 2 product BPP-L2-EBT primary panel $614.25 (with Stainless and glass) $384.75 - 2 product BPP-F2-EBT follow up panel $506.25 2 product BPP-F2-EBT with Stainles and glass 4-product with 1 reg. 4-way manifold, and brackets
	FOB short plastic $70.55 Requires 2 sets of tail-piece assemblies. 1/4 drain lines ($10 per FOB) Turn black knob on top counter clockwise until knob "pops" up allowing float to rise. Turn knob clockwise, to lock it down for normal operation.
	FOB Glass and SS Glass and Stainless Steel $134.95 Requires 2 sets of tail-piece assemblies 1/4 drain lines ($10 per FOB)
	FOB Tall Plastic $70.55 Requires NO tail-piece assemblies Drain assembly is $10 per FOB pull black handle down for normal operation.. Push in to release ball or during cleaning lines.
	Insulated Trunk Line Gen-X Latest technology with gas barrier and outstanding hygienic quality. No loss of co2 through tubing walls. 4-prod 2-gly $14.00/ft 6-prod 2-gly $14.35/ft 8-prod 2-gly $16.35/ft 10-prod 2-gly $19.15/ft 10-prod 4-gly $19.00/ft 12-prod 4-gly $20.75/ft
	Keg Shelves top shelf hold 15 lbs / square foot 1 3/4" square tubing (adjustable shelves) 1 5/16" round heavy wall tubing posts 76" height, 20" depth 10 keg - $1026 - 93" L X 76" H X 20" depth 8 keg - $775 - 80" L X 68" H X 17" depth
	Keg Dolly
	Miscellaneous Parts There are hundreds of fittings, clamps, brackets, ties, splicers, adapters, types of tapes, types of insulation, sealers, gap fillers, etc that are used in every installation. *Pricing for estimates or quotes is an educated estimate, not an exact figure unless specified as "flat fee." Not having product, power & water at the time of installation will result in additional trip charges. Estimated installation does not include electrical, plumbing, tubing chase core drilling, or cutting of specialty countertops. No installation work will begin if a responsible party (decision maker) is not available on site. End user is responsible for adequate ventilation & air circulation of all air cooled equipment per manufacturer's specifications.
	Labor We guarantee our work and provide free training for your staff. Our crews are bonded, certified Draft Beer Specialists who received continuing education to insure they remain on the cutting edge of Draft technology and practices. Our Draft Specialists will insure your system operates efficiently, saving you money on loss and making for happy customers.
