Draft Beer Towers Custom Tower available, just show us your design and let us build the tower that's just right for your business. Estimate for Installation of Parts and Labor This
agreement is entered into in South Houston, Texas made between
___________________ (hereafter called “Client”) located at
address: _______________________________ and Carbonics, INC. (hereafter called “Carbonics”) located at 506 Nebraska St, South Houston, Texas 77587. Carbonics agrees to provide parts and labor based on the following terms and conditions:
|
| Please understand that all prices are for estimate purposes and may change. Sometimes a vendor will discontinue a particular design. We make all possible attempts to keep this list accurate, but until you receive an actual quote this price isn't firm. | ||
 |

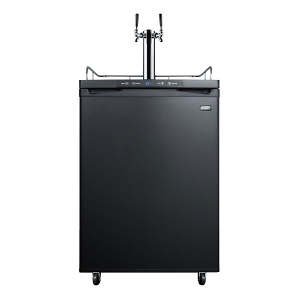

Summit 2-tap Kegerator 1 full sized keg or two 1/6th kegs 49" tall including tower handles 33.5" tall without castors, tower, or rails. 24" wide 25" deep $830.00
Undercounter specific model $950.00
|
|
 |
Micro Matic 3-keg Kegger | |
 | Ceramic Hydrant Cobalt Blue, Black Marble, Antique Green, Pearl WhiteTrim can be either Brass or Chrome 1-8 Faucets available $1183.00 1-Faucet $1917.50 8-Faucet AIR-COOLED ONLY (*extra cost for Glycol chilled) Drain pan for this tower SS or Brass $407.00 22" H, 7.5" dia, 12.75" faucet clearance, 3" mounting hole | |

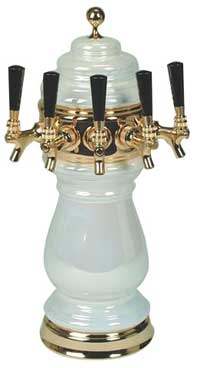

 | Ceramic Hydrant Pearl White See Info Above | |
 | Colonna Giotto Ice Tower ** Order ICE TOWER CHILLER separately to achieve the frosted ice coating. Tower made in Italy 1-4 Faucets Available $413 1-Faucet $1035 4-Faucet 13" Faucet Clearance Drain Tray $200.00 | Not available as of 8/16/18 |

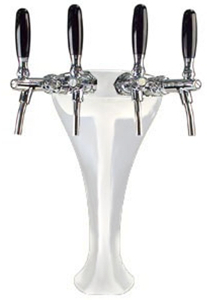

 | Cobra Ice Tower UBC Product - Stainless steel product lines, and color-coded glycol lines. | Not available as of 8/16/18 |
 | Compact ICE TOWER Glycol Chiller $867.50 1/6 HP Compressor 2 Gallon Reservoir Digital Thermostat 115V/60Hz Requires 10 amp dedicated circuit 19"L x 17"W x 17"H 38 lbs Up to 25' run | |
 | Square Pass-through Tower Stainless Steel Exterior or available in Tarnish-Free Brass $888 8-Faucet Air-Cooled $1140 8-Faucet Glycol-Chilled $1008 10-Faucet Air-Cooled $1320 10-Faucet Glycol-chilled $1164 12-Faucet Air-Cooled $1542 12-Faucet Glycol-Chilled BRASS VERSION: 10-Faucet Air-Cooled $1770 12-Faucet Air-Cooled $1914 Pass Through design 4" Square columns Air cooled or Glycol 15"H, 10.5" Faucet Clearance, 3" Centers faucet-to-faucet 304 Grade Stainless Steel inside and out | |
  | Flat Top Silo Air Cooled or Glycol Chilled 304 Grade Stainless Steel exterior, faucet, shanks Chrome-Plated or Brass-Plated $168 1-faucet Air-Cooled $240.70 1-Faucet Glycol-Chilled $423.40 3-Faucet Air-Cooled $507.50 3-Faucet Glycol-Chilled 1 & 2 faucet models are 12" height 3 faucet model is 14.75" height | |

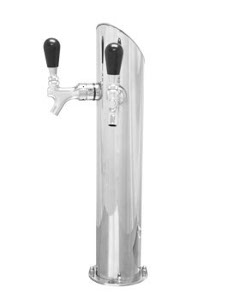

  | Gefest Heavy Gauge Stainless Steel $207.35 1-Faucet Air-Cooled $236.35 1-Faucet Glycol-Chilled $245.05 2-Faucet Air-Cooled $292.90 2-Faucet Glycol-Chilled 3.33" diameter, 18.5" height | |
 |
Edge $756 2-faucet air cooled version. |
|

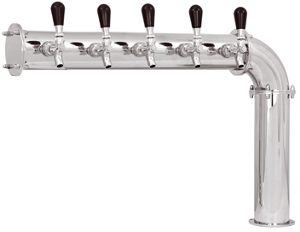

 | Persey $580 3-Faucet (Left or Right) $710.50 4-Faucet $855.50 5-Faucet Glycol-Chilled only Available in Left or Right configuration Stainless Steel Faucets and Shanks 18.5" to top of Tower, 14 5/8" Faucet Clearance, 4 5/16" Faucet-to-Faucet 3 3/16" diameter LED option available Short Leg option Available (changes clearance to 10 5/8") | |
 | Box-Top Stainless Steel, unbalanced, 6' 3/16 vinyl lines, 3/8 copper glycol lines 15" height, 11.5" faucet clearance, 3" pedestal $414 2-Faucet Air-Cooled 10" wide box $474 2-Faucet Glycol-Chilled 10" wide $426 3-Faucet Air-Cooled 10" wide $486 3-Faucet Glycol-Chilled 10" wide $450 4-Faucet Air-Cooled 13" wide $522 4-Faucet Glycol-Chilled 13" wide $526 5-Faucet Air-Cooled 16" wide $594 5-Faucet Glycol-Chilled 16" wide $594 6-Faucet Air-Cooled 19" wide $702 6-Faucet Glycol-Chilled 19" wide $702 8-Faucet Air-Cooled 25" wide box $792 8-Faucet Glycol-Chilled Available in Pass-Through configuration also 4" tall Box Face, 3" diameter column, 15" height, Drain Trays from $110 to $250 depending on width and length | |

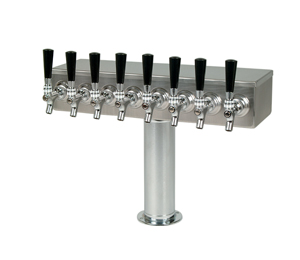

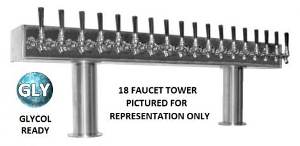

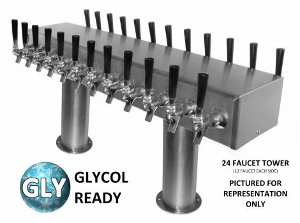

 | American Box Tower 10+ faucets 4" diameter pedestals 3" CTC faucets UBC $1385 14-faucet 43" wide Pedestals on 24" centers UBC $1565 16-faucet 49" wide pedestals on 27" centers UBC $1745 18-faucet 55" wide pedestals on 33" centers UBC $1915 20-faucets 61" wide pedestals are 39" centers UBC $2400 24-faucets 73" wide pedestals are 42" centers | |
 | American Box Tower (double-sided) 4" diameter pedestals 3" CTC faucets 12.5" Faucet to ground clearance UBC $1702 20-faucets (10 per side) 31" wide 15.5" pedestal centers Micromatics Version 11" Faucet to ground clearance MM $3240 20-faucets (10 per side) 36" wide | |
 | Wall-Mounted Panel 304 Grade Stainless Steel $735.75 2-Faucet Glycol-Chilled $830.25 6-Faucet glycol $1073.25 8-Faucet glycol 30" inset portion is 25"wide, 4" tall, 5" deep, except main cylindrical column is 21" deep $1788.75 12-Faucet Air-Cooled 36" Wide $1957.50 12-Faucet Glycol-Chilled | |

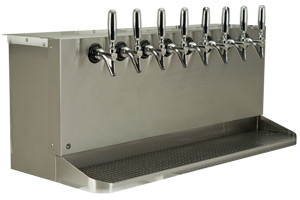

 | Under the Counter (premium) Attaches to BOTTOM of countertop. handles may reach ABOVE countertop Glycol chilled, 304 SS faucets, Kool-Rite technology (reduces condensation) 4-faucet $1260 20" W X 8.5" D X 16" H 4" FTF 5-faucet $1315 *out of stock* 6-faucet $1398 20" W X 8.5" D X 16" H 3" FTF 8-faucet $2016 38" W X 16" D X 16" H 4" FTF 10-faucet $2166 38" W X 16" D X 16" H 3" FTF 12-faucet $2295 38" W X 16" D X 16" H 3" FTF | |
 Economy version  Premium version + adds all 304 grade SS internals and copper Glycol lines aluminum cooling block and better insulation | Pipeline Polished Stainless Steel, Glycol-Chilled. (all sizes listed) $1250 6-Faucet WIDE Version (38 3/16" width) $1425 8-Faucet (35.5" width standard) $1675 10-Faucet (41 5/8" width standard) $1825 12-Faucet (47 5/8" width standard) $2125 14-Faucet (61" width) 3" diameter pipe, height to faucet 14 5/8" Available standard or Wide (3" FtF or 4 5/16" FtF) Available in Short leg (changes Clearance to 10 5/8") *
Available in "Premium" with all 304 grade Stainless Steel tubing with
copper Glycol lines for $250-300 extra depending on number of faucets | |

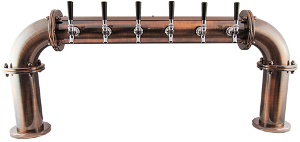

  | Pipeline (Brushed Copper Finish)
20-Faucet $5360 as of 8/2018 8-Faucet $3064.00 as of 9/2018 (8-faucet matching drip tray $1,150.00 (price may vary on this custom tower) (extra lead-time needed for powder coating) | |
 | Pipeline Brass PVD Finish | |

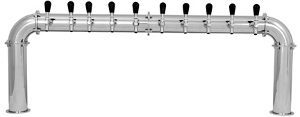

 | Arched Pipe $1710 8-Faucet, 43 3/5" width (*24" DT) $1925 10-Faucet, 49 1/2" width (*30" DT) $2220 12-Faucet, 55 3/7" width (*36" DT) Brass Body with a Stainless steel exterior and shanks. Cool-Tap technology (sealed, insulated, aluminum cold plate on shanks) 3/8" copper glycol lines (air cooled available) Height to Faucet 11.75" Pipe diameter 4.125" width for 8-faucet = 37.5" Finishes: Brushed or polished stainless steel | |

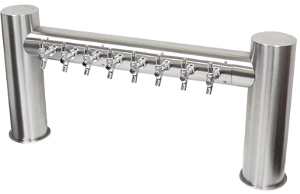

 | Bridge Tower $1550 8-Faucet, 39.5" width (*24" DT) $1780 10-Faucet, 45 7/16" width (*30" DT) $1985 12-Faucet 51 3/8" width (*36" DT) Brass and Stainless Steel with SS shanks and Faucets. Cool-Tap technology (sealed, insulated, aluminum cold plate on shanks) 3/8" copper glycol lines (air cooled available) Height to Faucet 12 3/8" Column diameter 5.125" Faucets are 3" Center to Center C2C Finishes: Brushed or Polished Stainless Steel | |

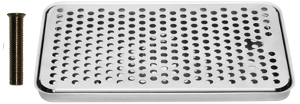

 | Drip Trays (DT) Stainless Steel Surface Trays: 12" X 7" X 3/4" height - $70 (2-3 faucets) 15" X 5.25" X 3/4" height - $75 16" X 8" X 3/4" height - $80 (4 faucets) 18" X 8" X 3/4" height - $215 18" X 8" X 3/4" height + Glass Rinser - $250 20" - $150 (4-5 faucets) 24" X 5.25" X 3/4" height - $155 24" - $160 (5-6 faucets) 32" - $175 (8 faucets) | |

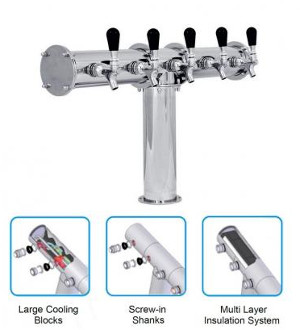

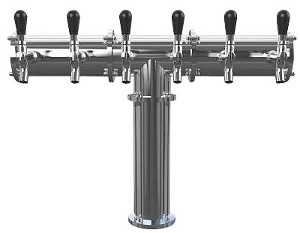

 | Terra Tower 4, 5, & 6 $832.00 4-Faucet (18 1/8" w, 4 3/8" C2C) (+$200 LED med) *needs 16" DT
$952.00 5-Faucet (26 7/8" w, 5 1/16" C2C) (+250 LED med)
$1012.00 6-Faucet (24 3/8" w, 3 7/8" C2C) (+$300 LED med) *needs 24" DT Stainless Steel internals Cool-Tap technology (sealed, insulated, aluminum cold plate on shanks) 3/8" Glycol lines (air cooled available) height to Faucet 12" column diameter 3 3/16" Faucets Center-To-Center C2C varies, can order a "short" model 6-faucet version is 24 3/8" wide, overall height to top of faucet is 15.5" finishes: Brushed or Polished Stainless Steel | |
 | Crossed Pipe Chrome or PVD Brass 304 Stainless Steel, Glycol Chilled Tower 3-4" FtF Centers, 24-34" wide, 16" height, 11" faucet clearance 4" column, 6" diameter base, (7.5 lbs of restriction, balanced) 4-Faucet SS3 24" $1085.00 4-Faucet PVD3 24" $1295.00 6-Faucet SS3 24" $1250.00 6-Faucet PVD3 24" $1485.00 8-Faucet SS3 24" $1380.00 8-Faucet PVD3 24" $1575.00 8-Faucet SS4 34" $1380.00 8-Faucet PVD4 34" $1610.00 10-Faucet SS3 34" $1485.00 10-Faucet PVD3 34" $1750.00 drip trays $335-$595 (depending on finish and options) DT surface mount SS 4-8 faucets 24" X 8.5" X 3/4" $360 DT surface mount SS 8-10 faucets 34" X 8.5" X 3/4" $435 DT surface SS Rinser 4-8 faucets 24" X 8.5" X 3/4" $435 DT surface SS Rinser 8-10 faucets 34" X 8.5" X 3/4" $505 DT surface PVD 4-8 faucets 24" X 8.5" X 3/4" $450 DT surface PVD 8-10 faucets 34" X 8.5" X 3/4" $540 | |
 | Crossed Pipe in BRASS PVD (custom order, may take longer) See Above Info | |

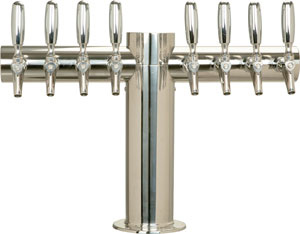

 | Capital T Glycol Chilled Only Stainless Steel Shanks and Faucdets $762.75 4-Faucet 17.5" wide $870.75 5-Faucet 26" wide $945.00 6-Faucet 25" wide $1065.15 8-Faucet 31.75" wide Shanks bolt into large aluminum blocks with copper recirculation lines to insure optimal cooling. glycol lines are copper with 3/8" barbed ends. Shanks are separated from tower body by thermo-seals, insuring no condensation on tower. | |
 | Columnar Drain Trays | |
 | Milano $400.40 2-Faucet 5" wide $527.80 3-Faucet 8" wide $644.00 4-Faucet 10" wide available with LED medallions 13" Faucet Clearance | |
 |
| |

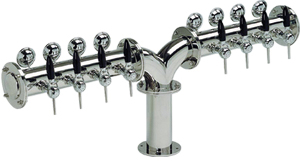

 | BrauHaus-Y 6-12 Faucets, Glycol or Air Cooled. (Glycol recommended due to configuration) Height 21 5/8", width (varies by faucet)", Faucet clearance 15 11/16" $4768.75 6- Faucet width 54 3/16" $5218.75 8 - Faucet width 59 3/16" $5431.25 10 - Faucet width 64" $6062.50 12 - Faucet width 68 7/8"
| |

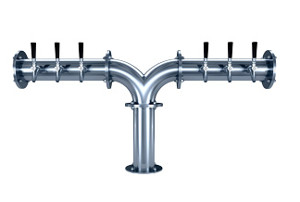

 | Titan "Y" (from Micromatic) 4" diameter pedestal, 7" flanges product only touches 304 SS Polished Stainless Steel exterior (long lasting) Glycol Only overall height 19 7/8" Faucet clearance 14", 4" centers 6-faucet $2193.75 width 44 3/4" 8-faucet $2666.25 width 52 3/4" 12-faucet $3368.25 width 68 3/4" | |

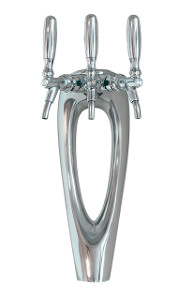

 | Mystique Tower (From Micromatic) Glycol Only, limited availability ** requires DP-1604 drip tray or DP-1605 to catch extra condensation run-off. ** use 1/4" john Guest connector for product line ** available frost-free exterior, or ice-frosted. Beer contact only Stainless steel components Faucet Clearance 13", overall height 17" 2.5" base sleeve fits through counter, Nut tightens over threaded sleeve to secure unit to counter. | |

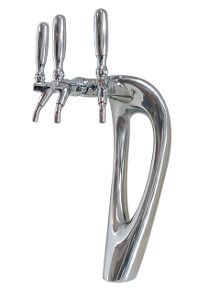

 | Mystique Tower side view comes in 2, 3, or 4 faucets ice-over (frost) or standard are same price 2-faucet $1161.00 2-faucet with lighted medallions $1566.00 3-faucet $1734.00 3-faucet with medallions $2254.50 4-faucet $2328.75 4-faucet with medallions $2943.00 | |

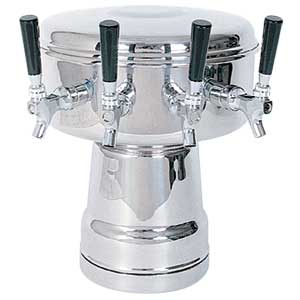

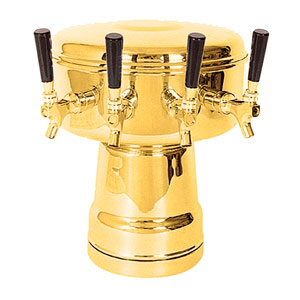

 | Mushroom Stainless Steel or Brass Air-Cooled or Glycol Chilled $1066.50 Air-Cooled 4-Faucet $1242.00 Glycol Chilled 4Faucet $1147.50 Air, 5-Faucet $1329.75 Glycol, 5-Faucet $1188.00 Air, 6-Faucet $1404.00 Glycol 6-Faucet base diameter 7.5", top diameter 12 1/8" 15" height, 10" Faucet Clearance | |
 | Mushroom - Brass See Above Info. | |
 | Flush Mounted Drain Pans extra $$ + up to 2 weeks manufacture time | |
 | Wall Mount Long Draw Glycol Chilled Panel | |

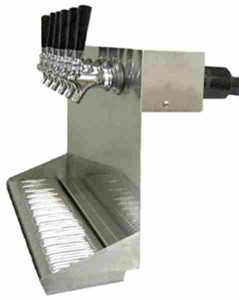

 | Wall Mount Drain with Shank opening Short-Draw applications only $72.50 1-Faucet 6" $96.45 2-Faucet 12" $100.91 3-Faucet 12" $213.35 4-Faucet 16" $272.80 5-Faucet 19" $340.55 6-Faucet 22" 12.5" height. Front of drain pan is 5" from wall. | |

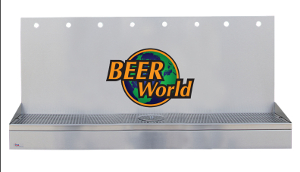

 | Custom Graphics | |

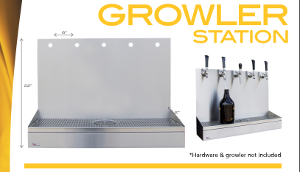

 | Growler Station (panel) 6" CTC Faucets 16.5" Clearance under faucets | |
 | Faucets Faucets can come in Stainless Steel, 304 Grade Stainless (for wine), or in chrome plated Brass for extra economy. | |

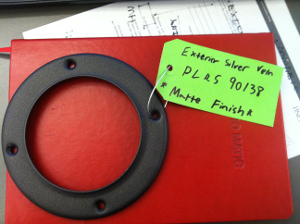

 powder coated black iron example | Finishes: Most towers can be finished with polished stainless steel, or brushed stainless steel. Some towers can have a Brass/PVD finish (usually a few hundred $$ more)
Any Tower could be powder-coated to achieve the exact look you want. Hundreds of powdercoating colors and textures to choose from. (see pic) | |
 |  | |
Beer Systems Hardware Author: Sam This is the backbone of your Draft Beer System. A Carbonics Inc installed system is guaranteed to pour a perfect beer! Listed below you can find some of the equipment (and cost) available to build your cost saving Draft Beer System: |
 If your gas blend is not right you will have eiher flat beer or foamy beer. Both of which cost you income! | Carbonics Draft Beer Equipment Purchase
or Lease your equipment (see bottom for lease info) Carbonics, Inc. guarantees a perfect pour for every line, saving you $$ on loss of product. No wasted foam, no overpours, no waiting for the beer to "settle". Talk to us about your equipment options: 713-944-7900 |  Colder beer loses all taste. Warmer beer is unpleasant and more likely to foam! |

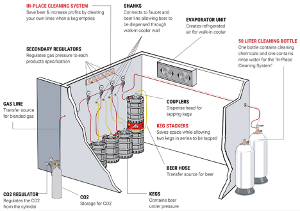

 Elements of a Direct Draw System |  Elements of a Long Draw System | Direct Draw is directly through the cooler wall. It is the cheapest, simplest, and utilizes nothing but CO2 to deliver perfect pours Long Draw
involves pumping or pushing the beer through insulated "trunk" line 25'
or more from the cooler to the dispense tower. You'll need either
a gas blender/nitrogen generator setup or beer pumps to achieve this.
You'll also need a Glycol chiller to keep the beer cold all the
way to the tower. |

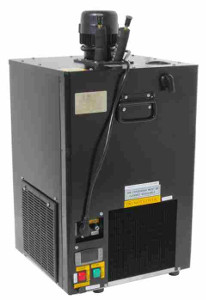

 | Perlick "quick Chill" Pp Series 1/3 Hp Glycol Chiller 1/3
HP Compressor 1 gallon reservoir Up to 150' run. Digital thermostat 120V/60Hz All PP Series units require 15 amp dedicated circuit 28"L x 21 3/4"W x 16 3/4"H Includes 6' length power cord Shipping weight: 120 lbs $2275.00 | |
 | Perlick "quick Chill" Pp Series 1/2 Hp Glycol Chiller 1/2
HP Compressor 1 gallon reservoir Up to 250' run Digital thermostat 120V/60Hz requires 15 amp dedicated circuit 28"L x 21 3/4"W x 16 3/4"H Includes 6' length power cord Shipping weight: 125 lbs $2390.00 | |
 | Perlick "quick Chill" 4400 Series 3/4 Hp Glycol Chiller 3/4 HP Compressor Up to 300' run Upgradeable to 2 pumps & 400' run 2 gallon reservoir plus 1 additional gallon per 85' if trunk length used Digital thermostat 120V/60Hz or 230v/60Hz Requires 20 amp dedicated circuit 24 1/4"L x 17 1/4"W x 25 1/2"H ** Does not include power cord Shipping weight: 180 lbs $3245.25 | |
 | Gly Chiller, 75g TOTTON (1/3hp) Up to 75' run 5 gallon reservoir1/3 HP compressor Digital thermostat 115V dedicated circuit 15 amp 14"W x 15"D x 28"H$1345.00 | |
 | Gly Chiller, H-35g TOTTON (1/3hp) 5 gallon reservoir 1/3 HP compressor Digital thermostat 115V dedicated 15 amp circuit 27"W x 19"D x 15.5"H Up to 75' run $1345.00 (Micromatic mm4301-ep $1510) | |

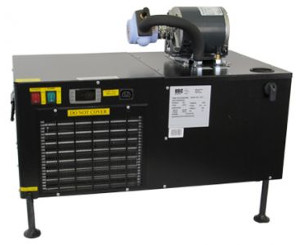

 | Gly Chiller, H-35g Proconn (1/3hp) 5 gallon reservoir 1/3 HP compressor Digital thermostat 115V dedicated 15 amp circuit 27"W x 19"D x 15.5"H Up to 125' run $1485.00 (Micromatic mm4301 $2135) | |
 | GLY CHILLER (1/3HP) Micromatic up to 125' run 115v 11.5 gallon bath 27.5" high X 18" wide X 29" Deep $2345 with single pump and motor $2575 Dual pump and motor | |
 | Gly Chiller, Extra (1/2hp) 1/2HP Compressor Up to 250' run 15 gallon reservoir Digital thermostat 1/3 HP pump motor 100 GPH Procon pump 115V 20"W x 24"D x 29"H $2045.00 | |
 | Gly Chiller, Extra (3/4hp) 3/4HP Compressor Up to 450' run 15 gallon reservoir Digital thermostat 1/3 HP pump motor 100 GPH Procon pump 115V 20"W x 24"D x 29"H $2565.00 | |

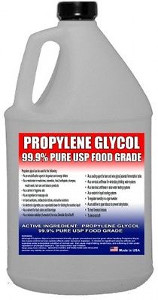

 | Food Grade Propylene Glycol $37.80/gallon | |
 | High Powered Fan Blower Rated for 24/7 continuous use inside a cooler. Blows cold air through a short-run draft beer system or tower. Used for Air-cooled systems $285
| |

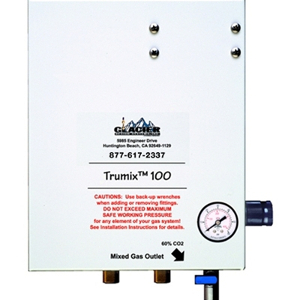

 | Gas Blender Mixes
CO2 and N2 to the perfect Blend. Eliminates need for beer pumps in medium distance draft systems. Blends gas on the spot for special blends like Guinness or other nitrogenated beers. Single Mix Blender - $950 Dual Mix Blender - $1150 | |

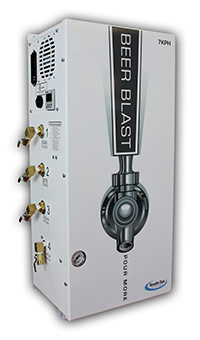

 | Nitrogen Generator (with dual blender) Dispenses up to 7 kegs/hour or 16.8 pints/min (5 hr. surge) N2 Purity 99.8% Technology: Dual Bed PSA N2 Storage Tank (Provided): 28 Gallon CO2 Gas Requirement: 80 to 85 psi Blender: McDantim Trumix™ Electrical: 110 VAC, 18 Amps Compressor: Integral/Oil-Free Ambient Temperature: 35 to 105° F Size (N2 Generator): 30"H x 13"W x 10"D (85lbs) $5300.00 | |
 | Wall Panel - Economy (short runs) $160 - 2 product $230 - 3 product $290 - 4 product | |
 | Wall Panel - Short (CO2) 4 products 4 line brackets, 4 regulators w/ shutoff, 4 sets of hose Good for short draw systems $178.35 - 2 products $255.00 - 3 products $330.00 - 4 products | |
 picture approximate | Wall Panel - Short with FOBS 4 connection brackets, 1 secondary regulator, 4-way air manifold, 4 glass and stainless steel FOBS $ 594.55 - 4 products ubc $ 315.20 - 2 products ubc | |
 | Wall Panel - medium range (mixed gas) 4 products 4 FOBs, 4 Regulators, 4 sets of hose Good for medium ranges, maybe in combination with mixed gas $325.00 - 2 products $475.00 - 3 products $623.00 - 4 products | |
 | Wall Panel - Long (pumps) 1 Regulator w/ manifolds, 1 Regulator for pumps Good for any length of run. $630.00 - 2 product $850.00 - 3 product $1075.00 - 4 product $614.25 (with Stainless and glass) $384.75 - 2 product BPP-F2-EBT follow up panel $506.25 2 product BPP-F2-EBT with Stainles and glass | |
 | FOB short plastic $70.55 Requires 2 sets of tail-piece assemblies. 1/4 drain lines ($10 per FOB) Turn
black knob on top counter clockwise until knob "pops" up allowing float to rise. Turn knob clockwise, to lock it down for normal operation. | |
 | FOB Glass and SS Glass and Stainless Steel $134.95 Requires 2 sets of tail-piece assemblies 1/4 drain lines ($10 per FOB) | |
 | FOB Tall Plastic $70.55 Requires NO tail-piece assemblies Drain assembly is $10 per FOB pull black handle down for normal operation.. Push in to release ball or during cleaning lines. | |

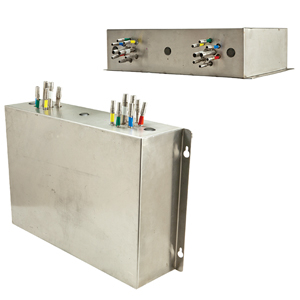

Beer Cold Plates (for problem systems)  | Flash Chiller Cold Plates - Glycol Chilled Fully-insulated 304 grade s/s lines glycol lines 3/8, product lines 5/16 4-product $682.50 6-product $738.50 8-product $794.50 10-product $934.96 | |

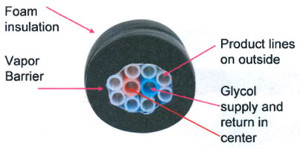

 | Insulated Trunk Line Gen-X Latest technology with gas barrier and outstanding hygienic quality. No loss of co2 through tubing walls. 4-prod 2-gly $14.00/ft 6-prod 2-gly $14.35/ft 8-prod 2-gly $16.35/ft 10-prod 2-gly $19.15/ft 10-prod 4-gly $19.00/ft 12-prod 4-gly $20.75/ft | |

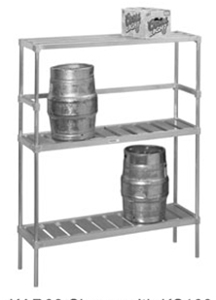

 | Keg Shelves top shelf hold 15 lbs / square foot 1 3/4" square tubing (adjustable shelves) 1 5/16" round heavy wall tubing posts 76" height, 20" depth 10 keg - $1026 - 93" L X 76" H X 20" depth 8 keg - $775 - 80" L X 68" H X 17" depth | |

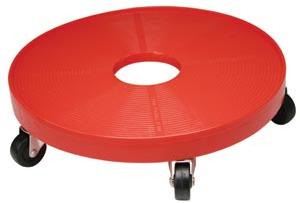

 | Keg Dolly | |

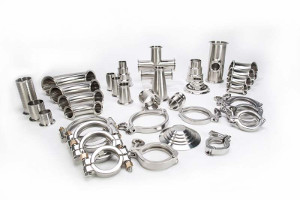

 | Miscellaneous Parts There
are hundreds of fittings, clamps, brackets, ties, splicers, adapters,
types of tapes, types of insulation, sealers, gap fillers, etc that are used in every installation. *Pricing for estimates is an educated estimate, not an exact figure unless specified as a "quote".
Not having product, power & water at the time of installation will result in additional trip charges. Estimated installation does not include electrical, plumbing, tubing chase core drilling, or cutting of specialty countertops. No installation work will begin if a responsible party (decision maker) is not available on site. End user is responsible for adequate ventilation & air circulation of all air cooled equipment per manufacturer's specifications. | |
 | Labor We
guarantee our work and provide free training for your staff. Our crews are bonded, certified Draft Beer Specialists who receive continuing education to insure they remain on the cutting edge of Draft technology and practices. Our Draft Specialists will insure your system operates efficiently, saving you money on loss and making for happy customers. | |
 |  |
