Carbonics Draft Beer Tower Options

Any of these Towers CAN be Powder-coated or Hydro-dipped to achieve any color or pattern. Brushed or Polished Brass, American Flag, neon green, Camoflage, whatever you can imagine. We can also do ANY Custom Tower.

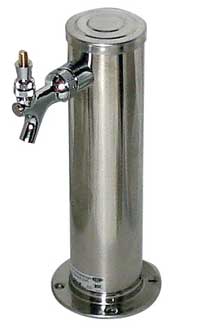

Single Column

1 - 4 Faucets
All columns are styrofoam insulated to prevent sweating
Diameter - 3"
Finish - Polished Stainless Steel
Faucets - 1
Cooling - Air
Height - 12"

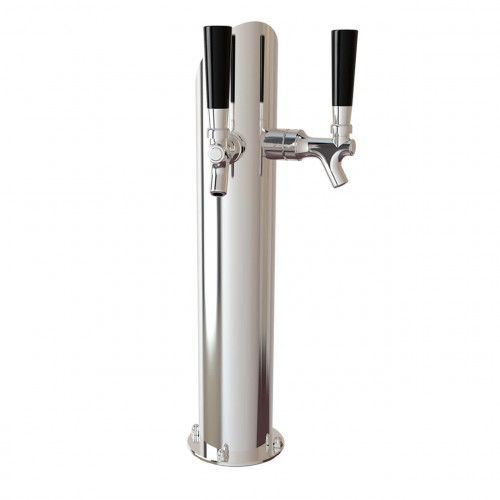

Gefest Column (European)

Air or Glycol

1 or 2 faucets

beer lines 3/16" ID Vinyl
height 18 3/8"
Pedestal 3 3/16"

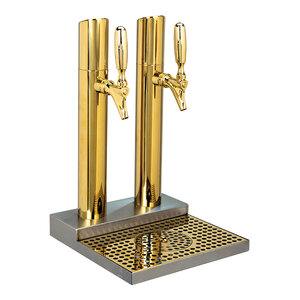

Skyline Dual Tap with Rinser (PVD BRASS)

Polish Stainless Steel also available
height 19"
faucet clearance 11"
beer lines ss with copper glycol

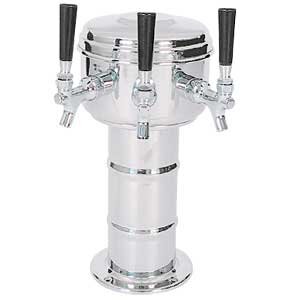

Mushroom Style

up to 6 faucets
White Marble, Black Marble, Solid Green, Solid Blue and Pearl White

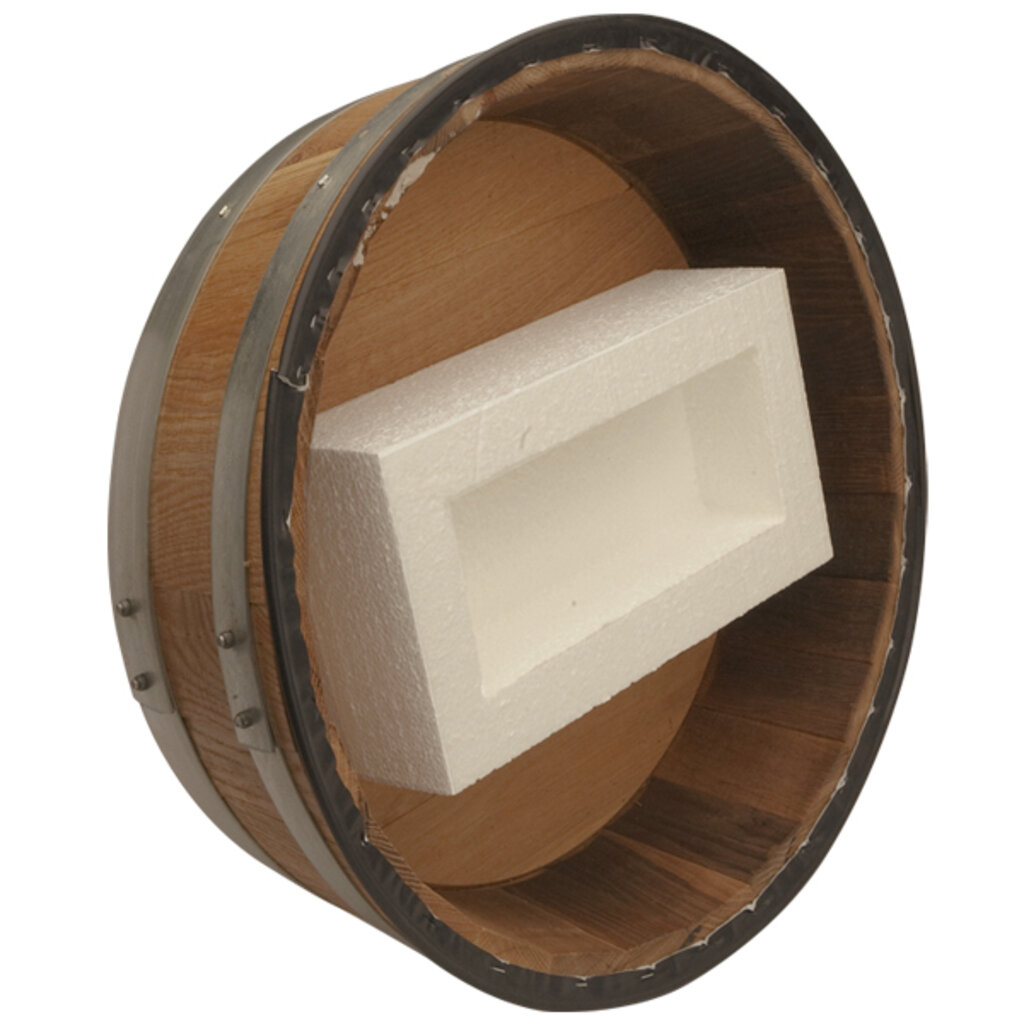

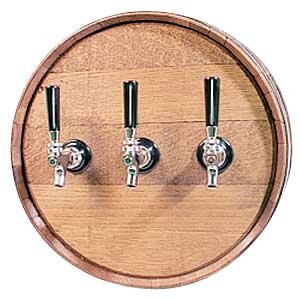

Barrel Head Draft Tower

1-4 faucets

Just the barrel head, no shanks or faucets included.

Only for mounting on Outside of Cooler wall.

Must be glued onto the cooler wall. Needs custom drain tray

Square Pass Thru Box

Air-Cooled or Glycol Chilled
All towers have 4-1/8" square column(s)
Overall height on all towers is 15"
Faucet clearance is 10-1/2"
Faucets on 3" centers
S/S comes with chrome faucets
Brass comes with brass faucets
Can be upgraded to S/S faucets and shanks
Number of Faucets - 8
Finish - S/S
Cooling Blocks w/ Loops - No
Width - 24"

Single Column Square Box Tower

Air or Glycol

3-8 faucets

15" height. Faucet Clearance = 10.5"

304 SS Faucets and shanks, SS exterior.

American Tower

All towers have 3" dia. column(s)
Overall height on all towers is 15"
Faucet clearance is 10-1/2"
Faucets on 3" centers
S/S comes with chrome faucets
Brass comes with brass faucets
Number of Faucets - 4
Finish - S/S
Cooling Blocks w/ Loops - No
Width - 13"

up to 8 faucets with single column (Glycol)
All towers have 3" dia. column(s)
Overall height on all towers is 15"
Faucet clearance is 10-1/2"
Faucets on 3" centers
S/S comes with chrome faucets
Brass comes with brass faucets
Number of Faucets - 4
Finish - S/S
Cooling Blocks w/ Loops - Yes
Width - 12"

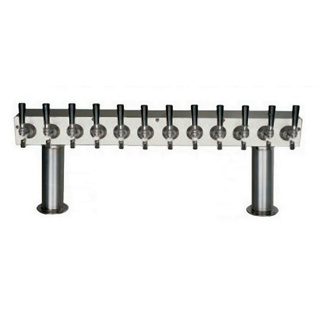

American Tower Dual column

8-12 taps
height 15"
faucet clearance 10.5"
columns centered 21.5" apart
12tap model is 36" wide

Double Sided American Box Tower

up to 28 taps

Perfect when you have an island in the middle of your bar.

Persey Tower

3 - 5 taps
SS beer lines, copper glycol
18.5" height
faucet clearance 14.5"

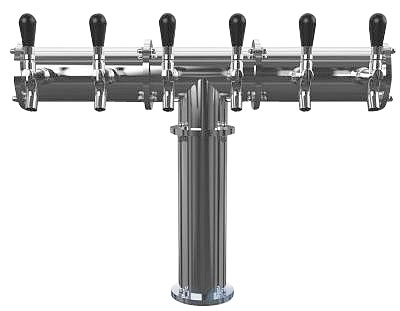

Crossed Pipe (Terra)

2-8 on a single column
All towers are glycol cooled
All towers are manufactured of heavy gauge stainless steel
All towers are polished to a mirrored finish
All towers include American faucets
Style - T-Tower
Faucets - 6

Cast Iron Pipe Tower

up to 10 taps before it starts being custom

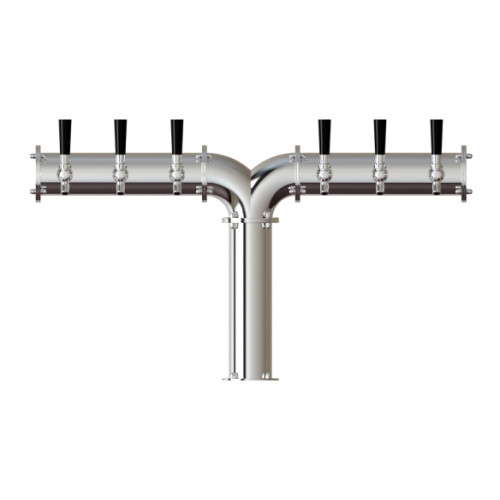

Yukon Tower

4-8 faucets
height 16"
6 tap = 34.6" wide

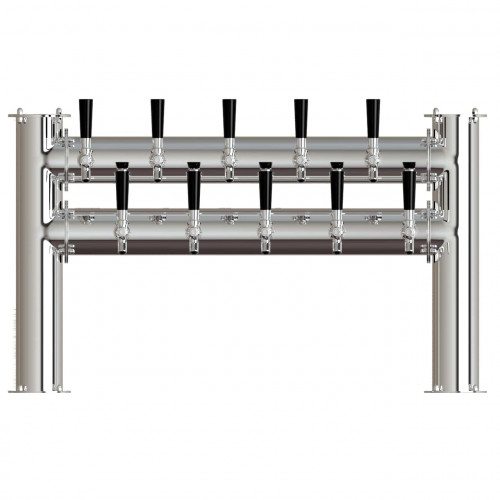

Double Bridge

Polished SS
height 20.3"
Faucet to faucet 5 1/8"
Pedestal 3 3/8"
faucet clearance (lower) 11.5"
6 taps - 23 7/8" wide
12 taps - 39 1/4" wide
14 taps - 44 3/8" wide

Arcadia Tower

6-12 taps with 2 legs as pictured
14 taps required 3rd leg in middle
height 18.5"
faucet clearance 14 5/8"
Pedestal 3 3/8"
Beer lines SS glycol copper
8 taps = 35 5/8" wide
12 taps = 47 5/8" wide

Wall Mounted Arcadia Tower

Many towers can be mounted on the wall. This may make finding a good drain tray more of a challenge, but it can be done.

Wall Mounted Flat Back

drain tray attached

4-20 taps

Air or Glycol
faucet clearance 12"

Wall Mounted Beveled Box

Wall Mounted Mushroom Tower

Needs Custom Drain Tray solution

3-5 Taps

Glycol or Air Cooled

roughly 13" from the wall to the front tap

6" base flange with wall-mounting hardware
